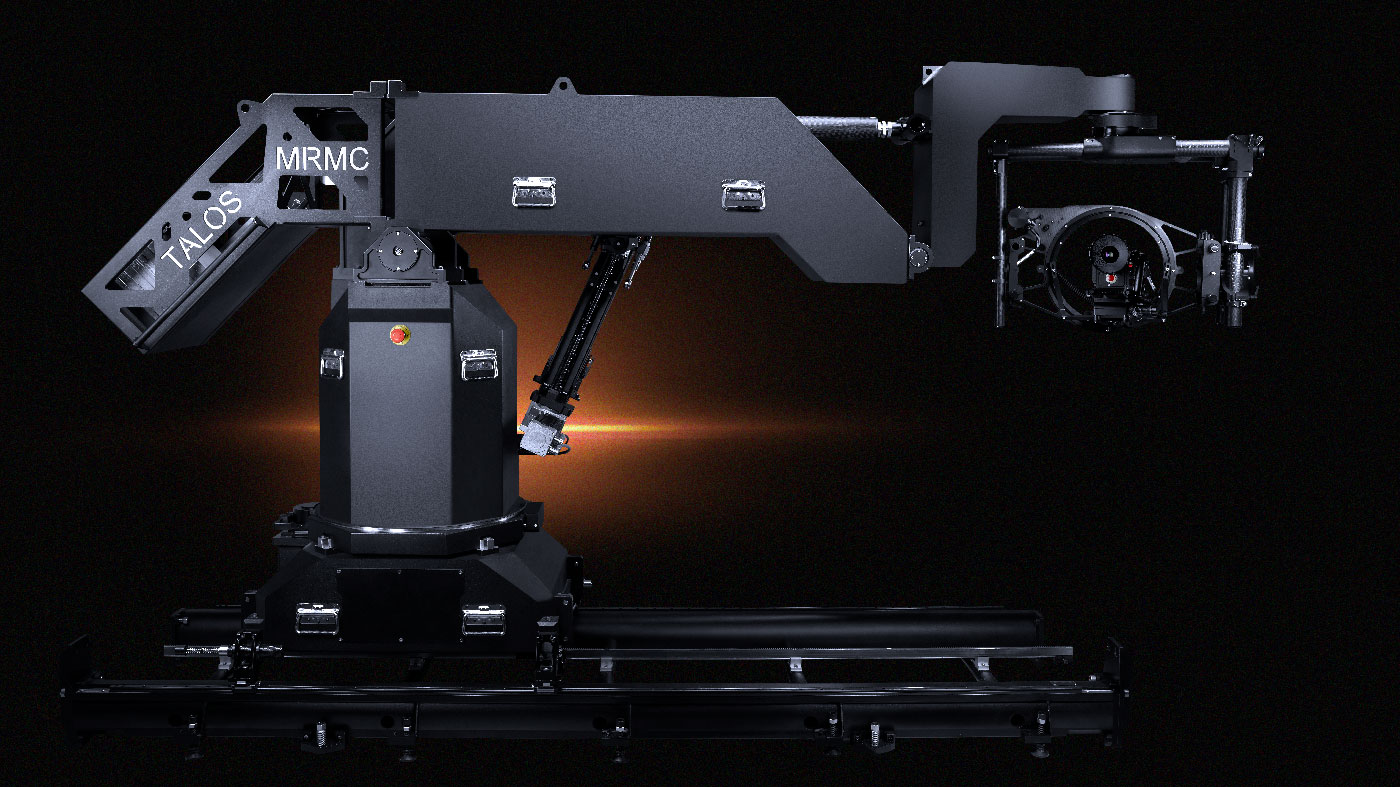

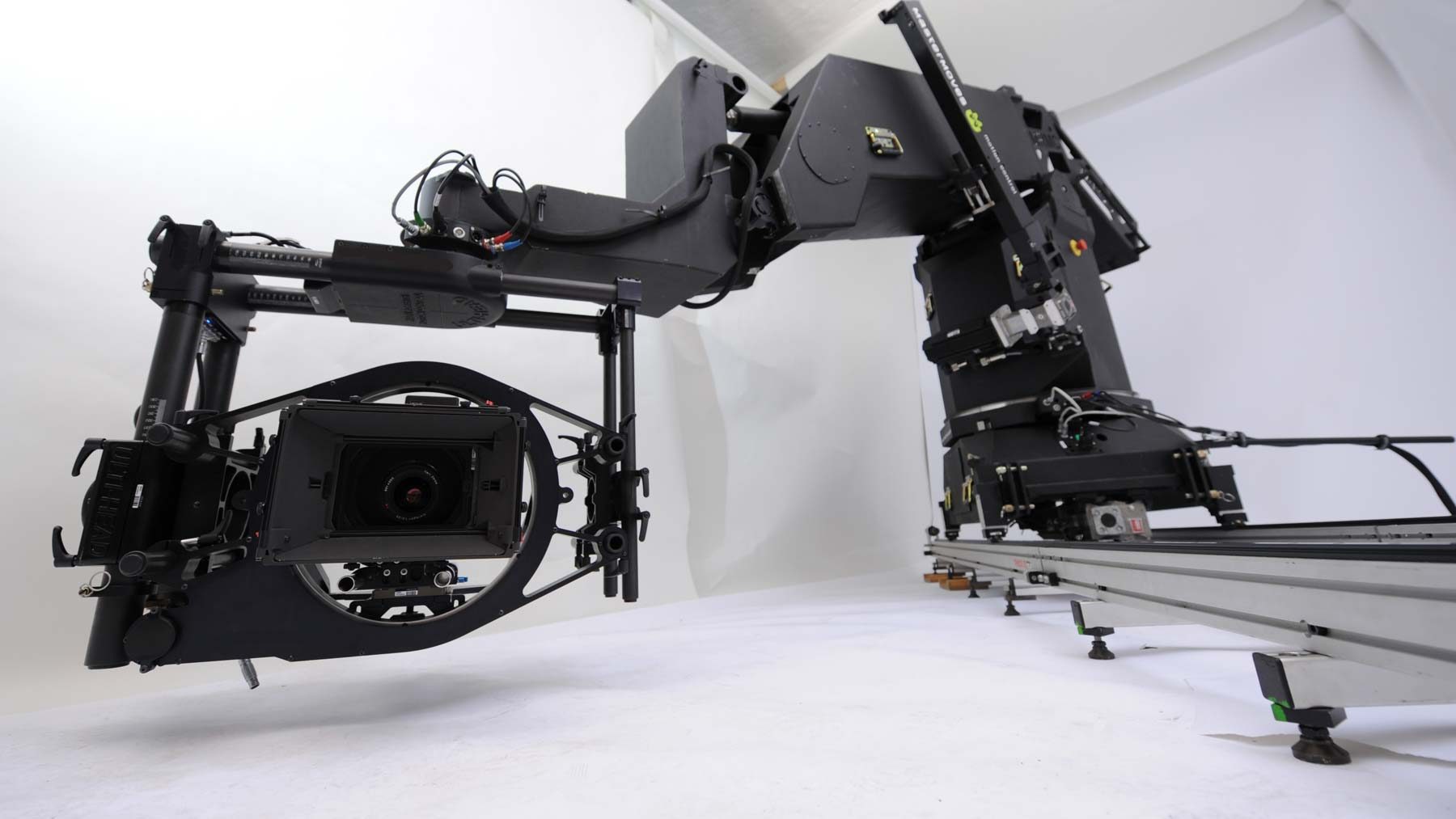

Talos
Slim, rugged design makes the Talos the ideal choice for location work.
The Talos is a medium sized rig designed to be portable and adaptable, making it the first-choice system for shots where space is limited but a large range is required. Though smaller than its bigger brother the Milo, the Talos still offers a wide operating envelope and being around half the weight of the Milo, the Talos is a more affordable option if freighting is necessary.
-
Weight
450kg
-
Track speed
3mps
-
Reach
2m
-
Set up time
45 mins
Operating Envelope underslung
| Maximum Height | 1.51m |
| Lowest height | -0.34m |
| Maximum range | 1.85m |
| Maximum reach (from rotate centre) | 2.15m |
| Maximum reach (from base unit) | 1.70m |
Operating Envelope overslung
| Maximum Height | 3.7m |
| Lowest height | 1.85m |
| Maximum range | 1.85m |
| Maximum reach (from rotate centre) | 2.15m |
| Maximum reach (from base unit) | 1.70m |
Rig Dimensions (for clearances)
| Talos Height (off track) | 1.9m (fits through a standard doorway) |
| Talos Minimum Height (on track) | 2.0m |
| Talos width (with wheel units) | 0.81m (fits through a standard doorway) |
| Talos Length (head on) | 3.35m |
Rig Performance
| Axis name | Range of travel | Maximum Speeds |
|---|---|---|
| Track | As required in 3m lengths | 2.5 m/s |
| Rotate | Unlimited | 70° /s |
| Lift | 1.84m | 0.22m/s |
| Pan | Unlimited | 120°/s |
| Tilt | Unlimited | 120°/s |
| Roll | Unlimited | 120°/s |
Practical Shooting Speeds
| MOVE | SPEED |
|---|---|
| 1m vertical move | 2.5 seconds |
| 1m horizontal move | 1.6 seconds |
| Largest complete 180° horizontal arc radius | 1.3m in 4.5 seconds |
Rig Weights
| Kg | |
|---|---|
| Base | 90kg |
| Turret | 65kg |
| arm | 68kg |
| Swan Neck | 15kg |
| Counterweight bucket | 41kg |
| Counterweights | 50 (5x10kg) |
| Lift Ballscrews & motor | 39kg |
| Jacking wheel units (removable) | 68kg |
| Ulti-Head (roll adds 7kg) | 35kg |
| Total weight of assembled Talos | 478kg |
| Each 3m track (heavy duty/light weight) | 97 / 65kg |
| Flair Magliner PC desk | 80kg |
Power Connection
| Power requirements | 1 x single phase (13A) 240 Volts, frequency 50-60 Hz |
| Generator | 6.5 KVA |
Download IK 3D Model
Please fill out the requested details below in order to request an IK 3D model of this motion control system. Note, this model is supplied as a MAYA (.mb) file suitable for versions 2018 & 2019.
Ensure you read the ‘text’ document prior to importing in to your scene.
