Motion Base
TOTALLY CONTROLLABLE CHARACTER MOVEMENT.

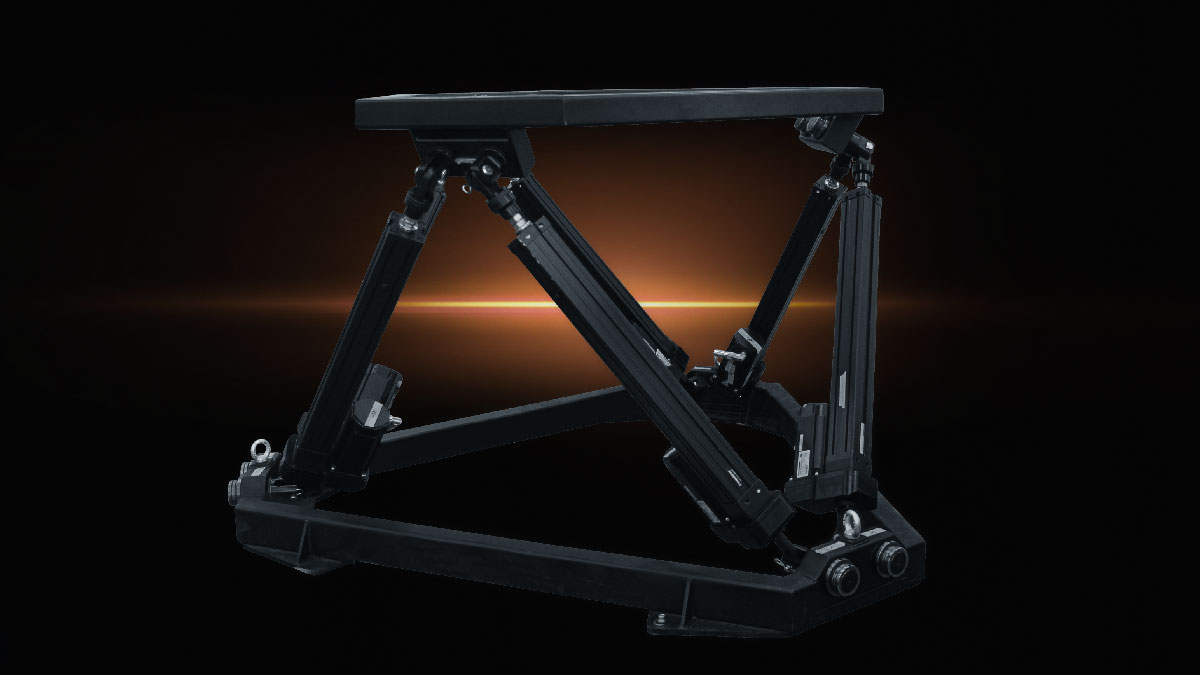

This 6 D.O.F (degrees of freedom) motion simulator is fully computer controlled and allows the platform’s movements to be programmed in such a way as to mimic the motion of creatures, cars, boats and aircraft etc.
Using our unique in-house software, moves can be plotted in advance or a ‘Waldo’ is available which will allow an operator complete manual freedom to move the system “live” whilst still recording the motion for frame-accurate repeatability. The Motion Base can be used in conjunction with any of our other motion control systems to achieve unrivalled realism of movement during the scene.
The whole system is portable enough to be transported in a small truck and set up in a couple of hours.
-
Degrees of Freedom
6
-
Payload Capacity
1000kg
Operating Envelope
| MOTION BASE (6 D.O.F) | |
|---|---|
| Max. platform height | 1.67m |
| Min. platform height | 1.18m |
| Max. slew (from rotate centre) | 1.16m |
| Max. platform tilt angle | 32° |
| With optional rotation base (7th axis) | |
| Max. platform height | 2.05m |
| Min. platform height | 1.56m |
Rig Performance
| AXIS | RANGE OF TRAVEL | MAXIMUM SPEEDS |
|---|---|---|
| Each actuator | =/- 44.2cm | 0.45m/s |
| Rotate base (optional) | inf | 105°/s |
Practical Shooting Speeds
| MOVE | SPEED |
|---|---|
| 0.5m vertical move | 1.5 seconds |
Weights
| Max. payloads | 1000kg (motion base) 3000kg rotate base |
| Motion base weight | 430kg |
| Rotate base weight | 950kg |
| Motion base amplifier | 120kg |
| Rotate base amplifier | 58kg |
| Flair console flight case | 42kg |
Rig Fixings
| The system can exert considerable innertia so it is essential that the Motion Base is fixed to a secure floor surface for safety and to prevent the system from sliding. MrMoco can bring suitable fixings. |
Power Connections
| Power Requirements | 1 x 32a 3 phase 415V (Motion Base only) |
| 1 x 63a 3 phase 415V (rotate base) | |
| 16a single phase 220V (Flair PC console desk) | |
| 1 x 25mm (minimum) earth safety lead (recommended) | |
| Generator | Max 20 KVA 3 phase (+E +N) 415 V (50 Hz) |
