Bolt On Track

SUPER FAST MOTION CONTROL CAMERA TRACKING SYSTEM

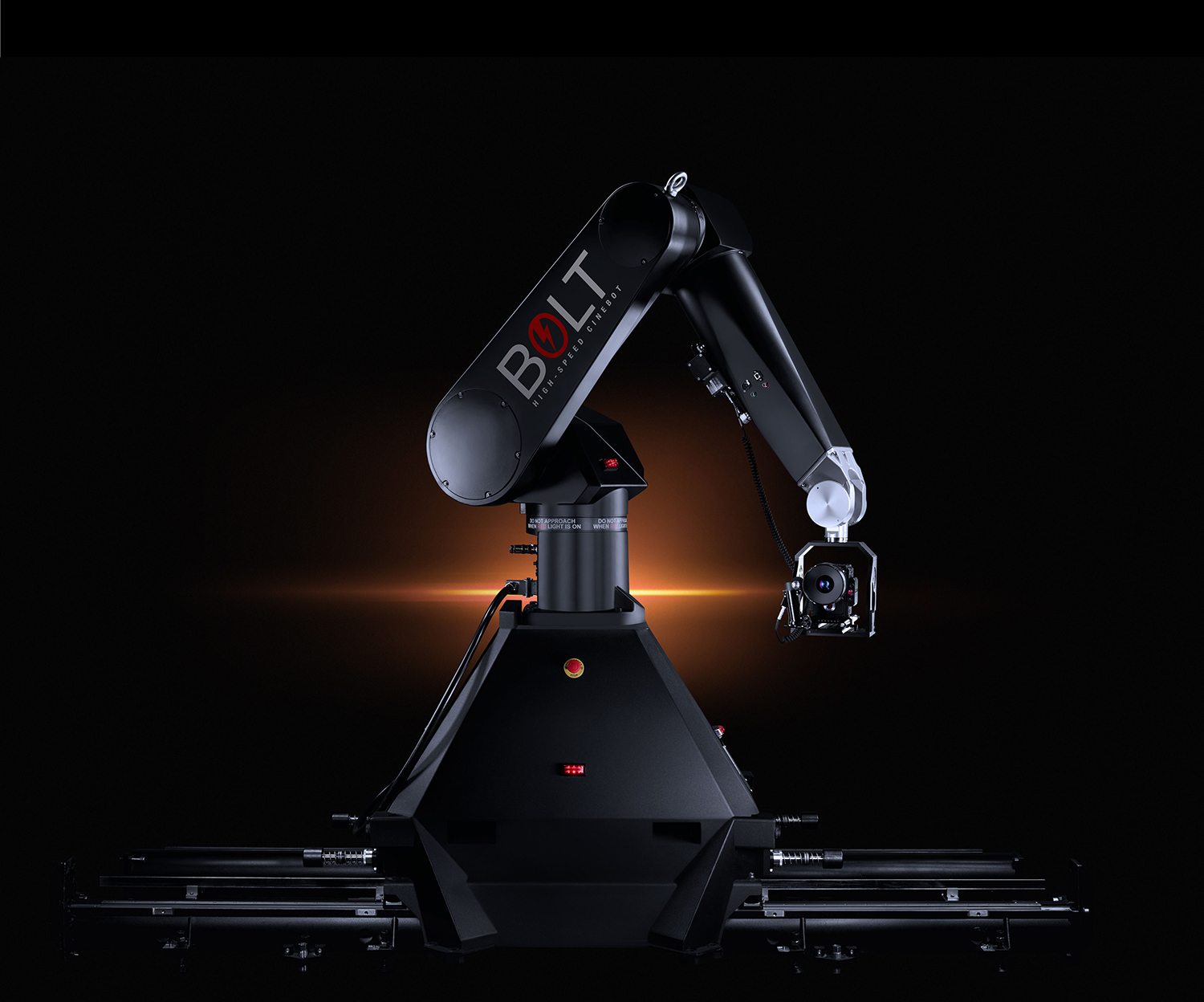

Combining the Bolt arm with a high-speed track gives a superior camera speed of over 6m per second with unlimited track lengths. Our interface provides triggers for SFX rigs and move import/export facilities with 3D software packages.

Track speed

4 mps
Set up time

1.5 Hour
Max Lens Height

3.5
Weight

650kg

Maximum Height (with level head)	2.45m
Lowest position	.0m
Maximum reach (from rotate centre)	2m

Height	1.8m
Base width (with wheel limits)	1.4m

Axis	Range of Travel	Maximum Speeds
Track	Unlimited	4 metres per second
Rotate	+/- 160 degrees	240 degrees per second
Lift	+/- 137 degrees	238 degrees per second
Arm	+/- 150 degrees	313 degrees per second
Pan	+/- 270 degrees	315 degrees per second
Tilt	+/- 120 degrees /-105 degrees	350 degrees per second
Roll	+/- 270 degrees	870 degrees per second

	Kg
Bolt rig	650
Flair console flight case	40
Maximum camera payload	28
Each 3m track	105

Because of the harsh acceleration and deceleration, the track sections of the rig must be bolted into a solid base or fixture. For studios, we drill four 15mm holes to a depth of 65mm for each length of track. Various counter weight systems can be used for location shooting.

Power requirements	3x400-415v, 32amp, 300 m/a RCD. 14 kva.

Download IK 3D Model

Please fill out the requested details below in order to request an IK 3D model of this motion control system. Note, this model is supplied as a MAYA (.mb) file suitable for versions 2018 & 2019.

Ensure you read the ‘text’ document prior to importing in to your scene.
