versatile, compact and high-speed robotic camera system

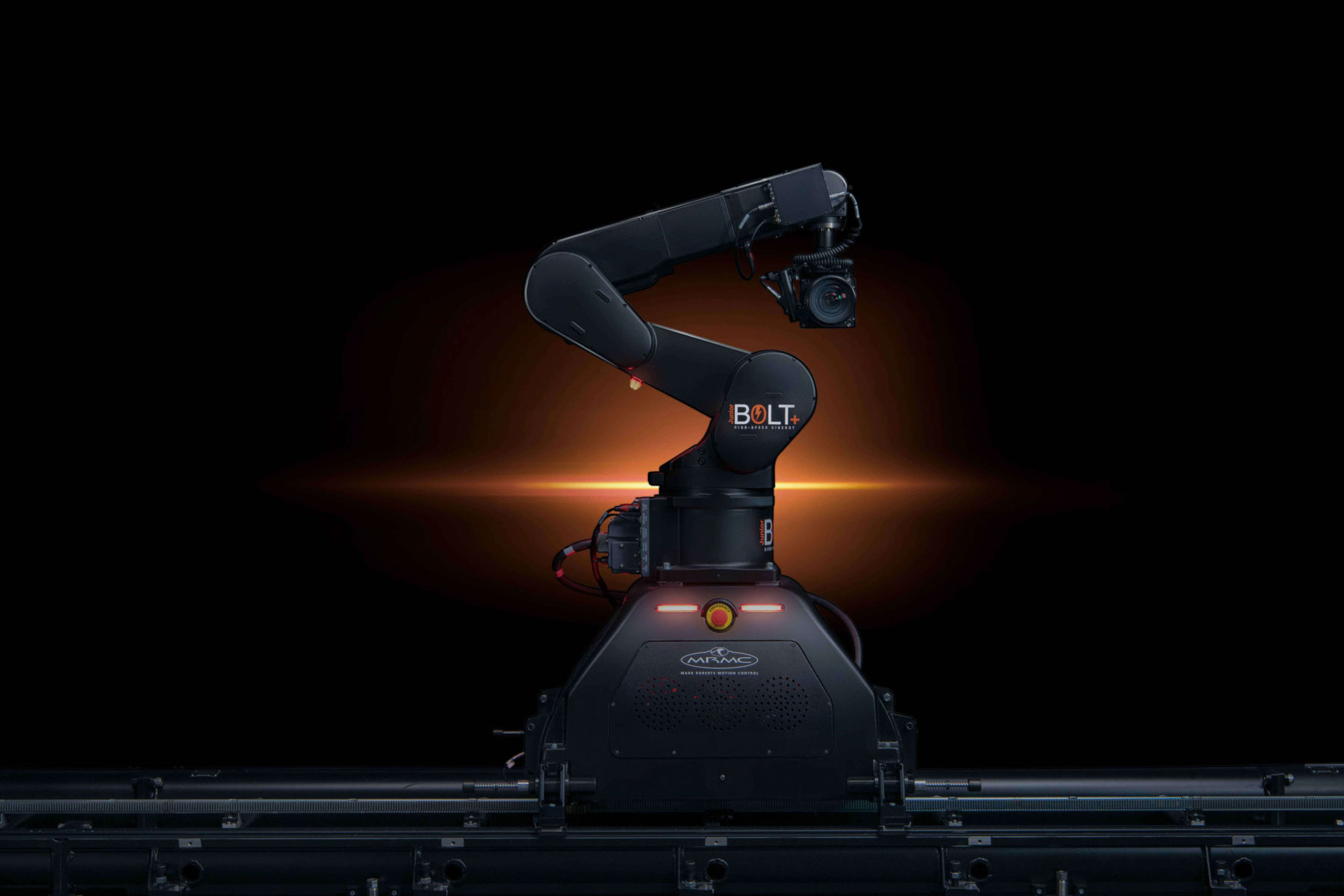

Bolt Jr. is a compact, lighter weight high-speed camera robot that’s an agile, smaller option than the full-scale MRMC Bolt on track. The Bolt Jr. is an ideal solution where space, weight, mobility and budget are key. 6 axis robotic arm on a high-speed base narrow enough to fit through a standard doorway.

  • Max Lens height

    2.5m

  • Max Reach

    1.2m

  • Set up Time

    1 hr

  • Track Speed

    3m per sec

Bolt Jr

AXISTRAVELSPEED
TRACKUNLIMITED3M PER SEC
ROTATE180° +/-400°
LIFT+145°/- 130° 390°
ARM+/- 145°400°
TILT+140° /-115°475°
PAN+/- 270° 540°
ROLL+/- 270°760°

Download IK 3D Model


Please fill out the requested details below in order to request an IK 3D model of this motion control system. Note, this model is supplied as a MAYA (.mb) file suitable for versions 2018 & 2019.

Ensure you read the ‘text’ document prior to importing in to your scene.
