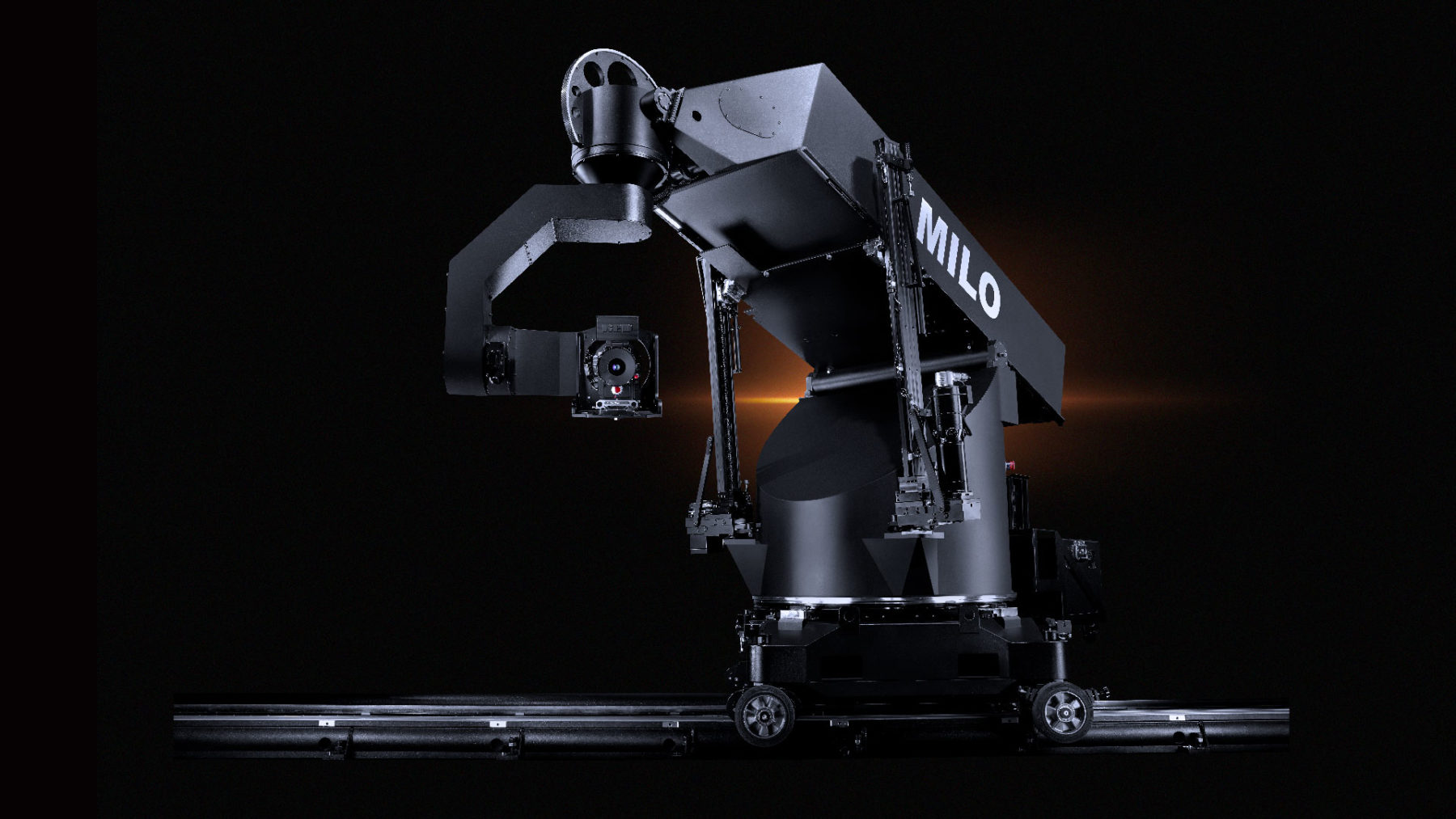

Milo – synonymous with motion control.

Used more than any other motion control rig in the world, the Milo’s versatility, portability and high accuracy makes it the ideal choice for live action shooting and macro tabletop work. With a resume of over 200 feature films and counting.

  • Max lens height

    4.2m

  • Min lens height

    0.84m

  • Reach

    3m

  • Set up time

    1 Hour

Operating Envelope

Maximum Height4.12m
Lowest position-.84m
Maximum travel (from sub floor)4.96m
Maximum reach (from rotate centre)3.09m
Maximum reach (from turret)2.54m

Rig Dimensions (for clearances)

Milo Minimum Height (off track)2.09m
Milo Minimum Height (on track)2.21m
Milo width1.27m
Milo Length (head off while travelling)2.92m
Milo Length (head on) 3.15m

Rig Performance

Axis nameRange of travelMaximum Speeds
TrackAs required in 3m lengths2 metres per second
RotateUnlimited30 degrees per second
Lift+/- 45 degrees24 degress per second
Arm Extend1 metre38cm per second
Outer Arm225 degrees40 degress per second
PanUnlimited120 degrees second
Tilt290 degrees120 degress per second
RollUnlimited120 degrees second

Rig Weights

KgLbs
Base166365
Turret160352
Standard Arm130286
Head with outer Arm63139
Extend Ballscrew2862
Lift Ballscrews3986
Power Supply Unit & Driver Unit124273
Total Weight of Milo7101565
Each 3m track105231
Flair Operator Console3270

Power Connection

Power requirements110-240 Volts, Frequency 50-60 Hz
Generator6.5 KVA
